Concrete columns are used worldwide in all types of concrete frame structures. RCC concrete columns are of two types based on the height of the column and cross-section.
- Square or Rectangular Column
- Circular Column
- L and T shaped Column
- Tied Column
- Spiral Column
- Composite Column
- Axially Loaded Column
- Uniaxial Eccentrically Loaded Column
Types of Column
Based on slenderness ratio
The ratio of the effective length of a column to the least radius of gyration of its cross section is called the slenderness ratio.
- Short RCC column, =< 10
- Long RCC column, > 10
- Short Steel column, =<50
- Intermediate Steel column >50 & <200
- Long Steel column >200
Based on the type of loading
- Axially loaded column
- A column subjected to axial load and unaxial bending
- A column subjected to axial load and biaxial bending
Column failure mode
When columns are not properly designed, they can fail by;
- crushing
- buckling
- shear, or
- by the combination of any of the above
Design Steps for column
- find the design life of the structure
- Evaluate actions on the column
- find which combinations of actions apply
- Assess durability requirements & determine concrete strength
- Check cover requirements for appropriate fire resistance
- Calculate minimum cover for durability, fire, & bond requirements
- Analyse structure to obtain critical moments & axial forces
- Check slenderness ratio
- Determine the area of reinforcement required
- Check spacing of bars

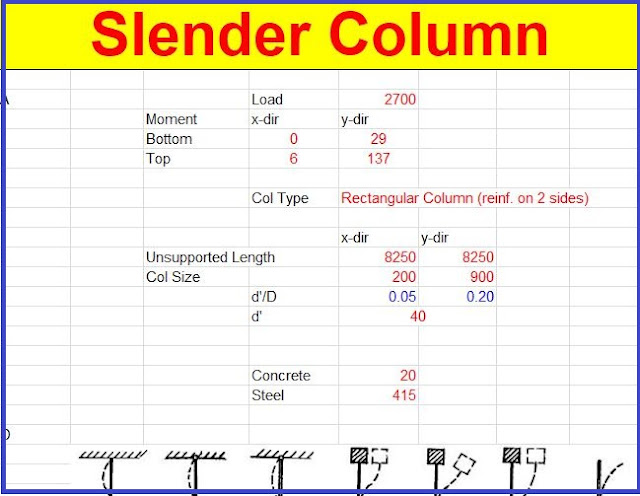

DOWNLOAD THE EXCEL SHEET OF COLUMN DESIGN -CLICK HERE
