1. STRUCTURAL DRAWING

                Structural drawing for Beach house building in AutoCAD format, In the previous post we have shared architectural plan & staad file. you can refer our site for that post of mentioned beach house drawing.

Join Us


WHATSAPP  -- CLICK HERE

TELEGRAM  -- CLICK HERE

YOUTUBE     -- CLICK HERE

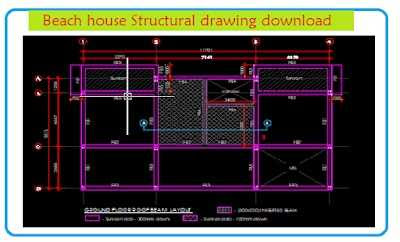

beach house structural drawing
beach house structural drawing



2. ARCHITECTURAL PLAN

                Architectural plan for the mentioned Beach house building are updated in our post. The link for the Architectural plan post are mentioned below of this post. All details regarding client requirements for Beach house are mentioned in Autocad plan.


beach house elevation
beach house elevation



3. SUMMARY OF BUILDING

INFO ABOUT BUILDING
DESCRIPTIONINFORMATION
ARCHITECTURAL PLAN SIZE27' X 57'
NUMBER OF FLOORTWO
SOFTWARE USEDSTAAD PRO
DETAILINGAUTOCAD
SUBSTRUCTURE(CRITICAL SIZE MENTIONED)
DESCRIPTIONINFORMATION
COLUMN SIZE1'-0" X 1'-6"
COLUMN REIMFORCMENT4 NOS 16+4 NOS 20
FOOTING TYPEISOLATED
FOOTING SIZE9'-0" X 9'-0"
FOOTIMG REINFORCEMENT12mm @4" C/C
GRADE BEAM SIZE0'-9" X 1'-6"
GRADE BEAM REINFOCEMENT4 Nos 16
STAIRCASESTRAIGHT
SUPERSTRUCTURE(CRITICAL SIZE MENTIONED)
DESCRIPTIONINFORMATION
GF BEAM1'-0" X 1'-6"
GF BEAM REIMFORCMENT7 NOS 25 MM
GF SLAB6" THK
GF SLAB REIMFORCMENT10 MM @5" C/C
GENERAL INFO
COVER
FOOTING60mm
COLUMN40mm
BEAM30mm
SLAB20mm
