In this post, we will share the warehouse floor plan AutoCAD drawing & PDF drawing. Download warehouse floor plan AutoCAD free of cost.
warehouse floor plan PDF -CLICK HERE
For AutoCAD scroll down and download

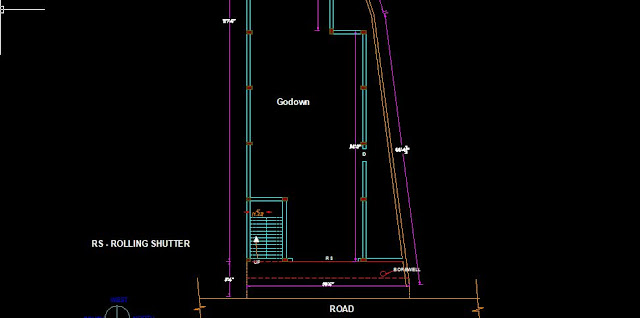

warehouse floor plan
| NO | DESCRIPTION | DETAILS |
|---|---|---|
| 1 | PLOT SIZE | 40' X 117' |
| 2 | BUILDING SIZE | 39' X 100' |
| 3 | FACING | EAST |
| 4 | NUMBER OF FLOORS | ONE |
| 5 | BUILDING TYPE | WAREHOUSE |
warehouse floor plan
1. GROUND FLOOR DETAILS
- Godown
- staircase
- Toilet
AREA CALCULATION
- Plinth area - 3950sq.ft
- Plot area - 4680 Sqft
Percentage of coverage area
=Ground floor area/plot area x 100
=3950/4680
=84%
Floor area ratio(FAR):
=total floor area/Plot area x 100
=3950/4680
= 8.4
Important Links:
This free format is purely for educational purposes only. Download & upgrade your knowledge and share this with your Juniors and senior.
warehouse floor plan AUTOCAD -CLICK HERE
ABOVE BUILDING COMPLETE SET DOWNLOAD
